Helios Standing Seam – The perfect blend of modern roof architectural with traditional solution. Combining with high quality substrate, this fully supported roofing system offers the flexibility to clad over almost any roof shapes possibly imagine.

ADVANTAGES

  • 100% Versatile applicable in architecture
  • Conceal Fixing with sliding stainless steel clips for thermal expansion
  • Long service life and no maintenance required through high quality coating
  • Extremely corrosion resistant
  • Wide colour selection
  • Reliable and proven system
  • Possible integration with solar system
  • Mobile Roll-Forming is possible!

GENERAL SPECIFICATIONS

  • 0.7mm thick EN 1397 Aluminium Alloy
  • PVDF coating based on standard RAL colour
  • Available in straight, tapered, and curved roofing sheet
  • Also available in other metals!

PROFILES AVAILABLE

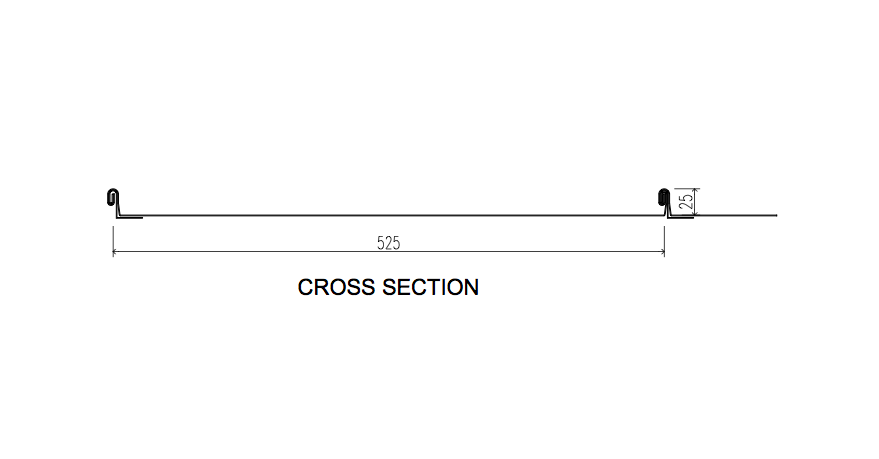

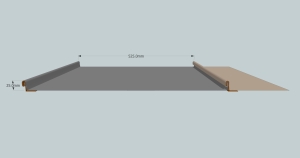

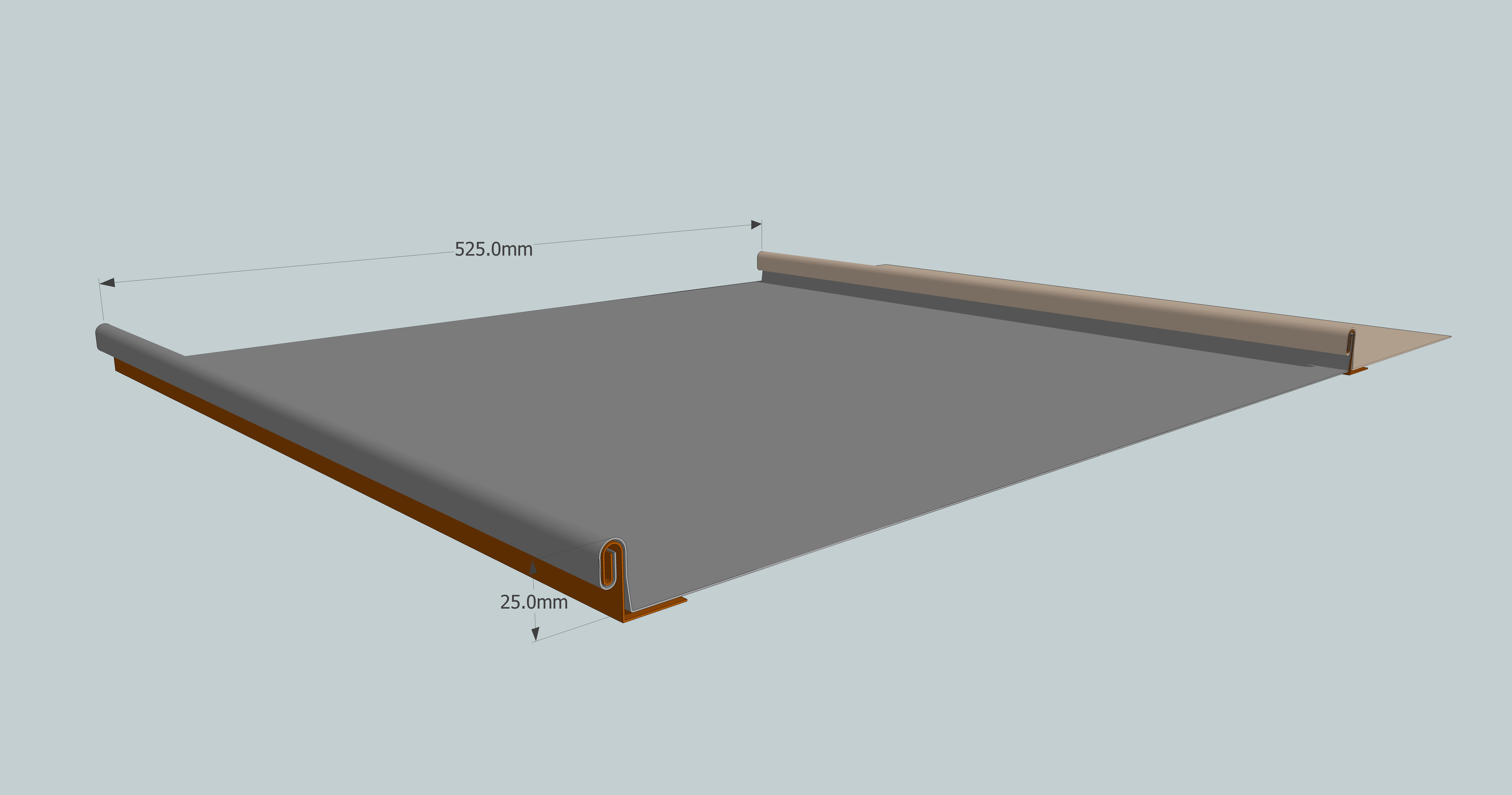

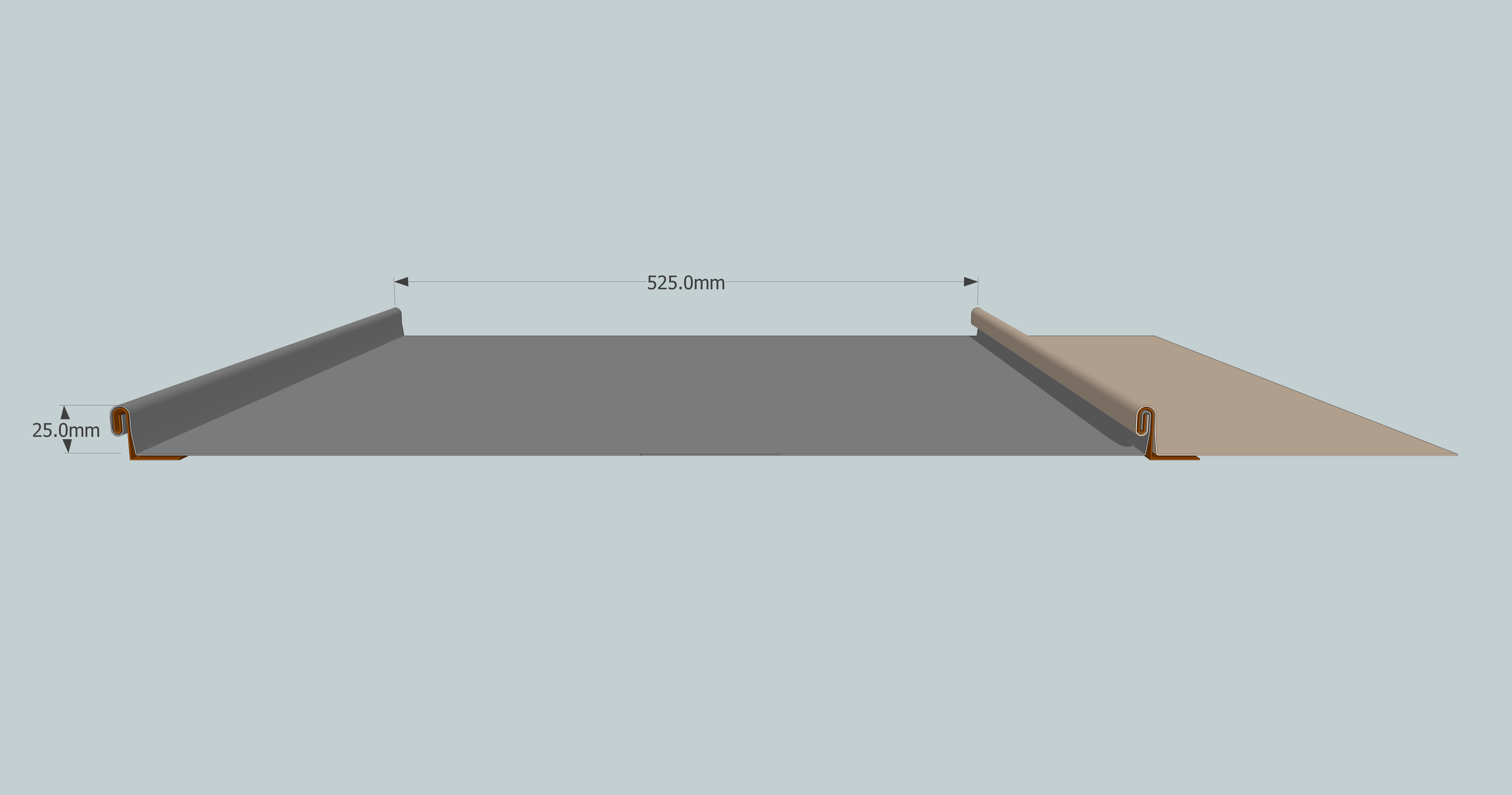

25mm seam height, 525mm pan width

  • 25mm 525 Pan Width
  • Cross section

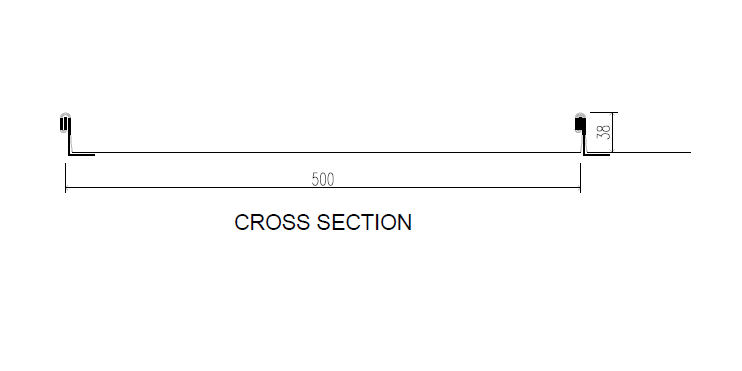

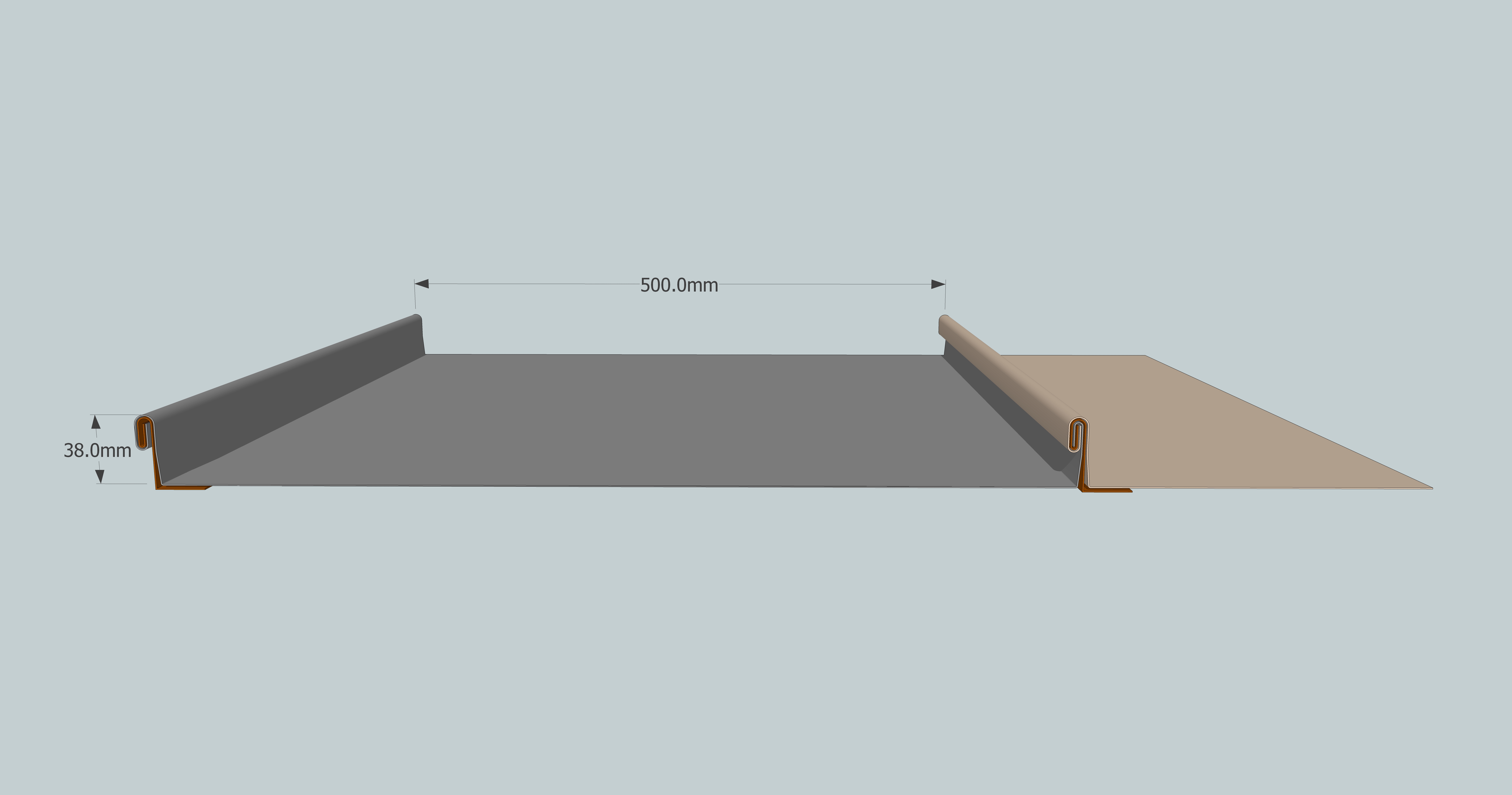

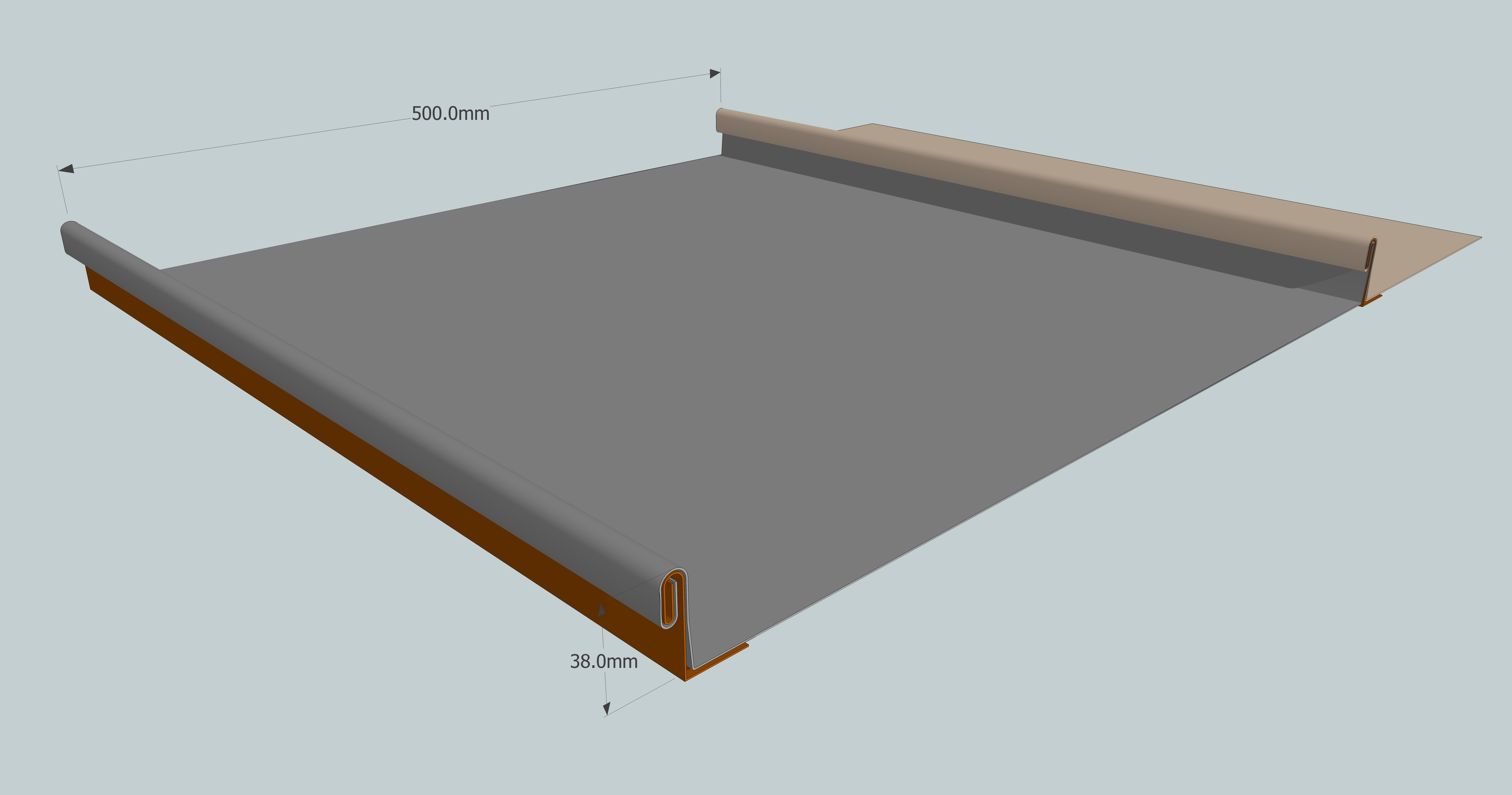

38mm seam height, 500mm pan width

  • 300mm Seam Height, 500mm Pan Width
